Courtside

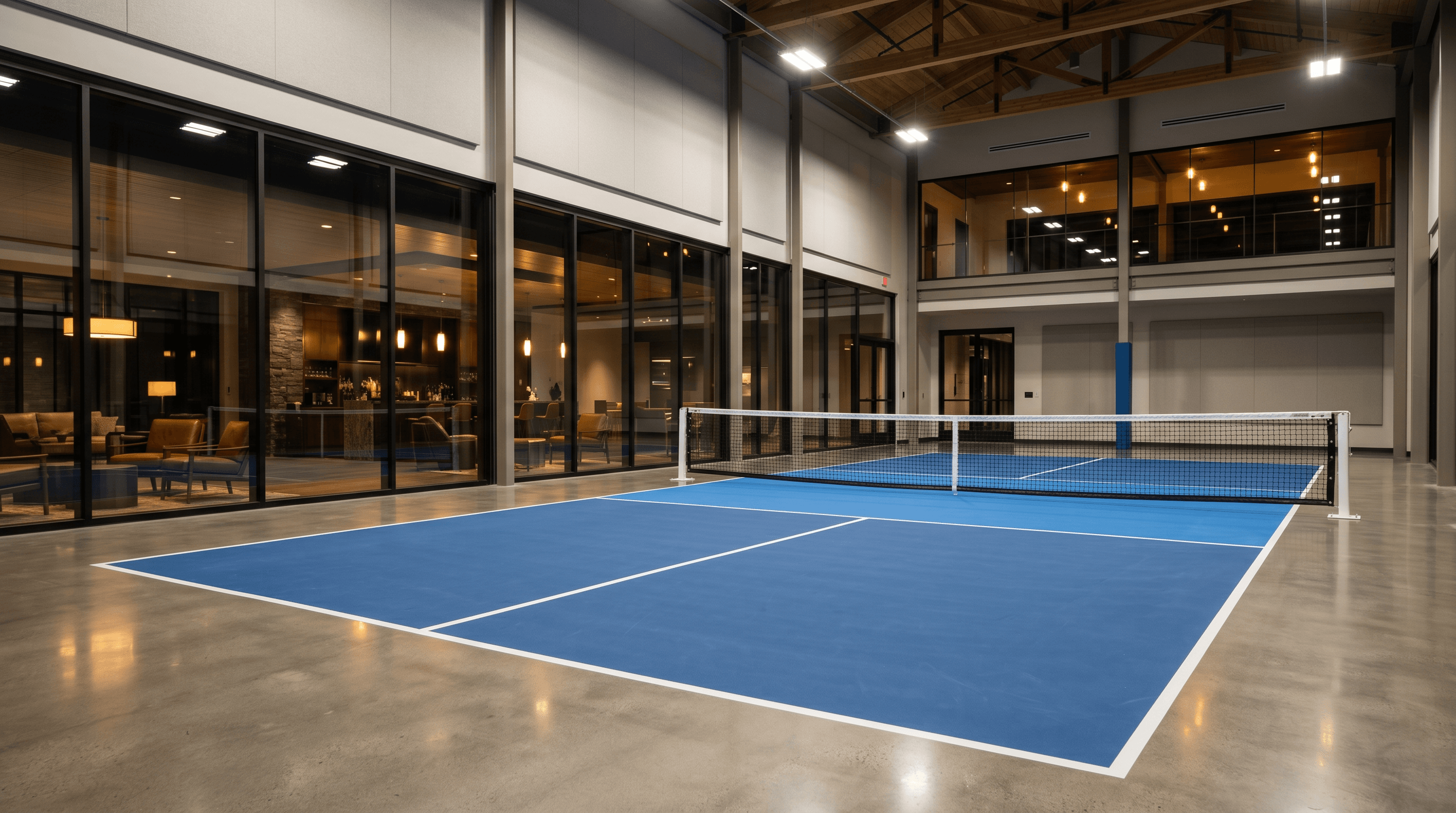

Pickleball court in Courtside blue with white tournament lines.

02 — Pickleball

Pickleball.

Acrylic surfaces over engineered concrete or asphalt bases. Tournament lines, club-grade hardware, scaled for any program from estate to facility.

Begin an inquiry

The System

One court, multiple bases.

Courtside pickleball courts share one acrylic surface system, but two structural foundations. Specification is driven by climate, sub-base soil, and projected play hours — not by catalogue convenience.

01Surface
Acrylic resurfacer over an acrylic colour coat — tournament blue, charcoal, or sand. ITF-tested ball bounce, sub-millimetre line tolerance.
02Base
Post-tension concrete for permanent installations; asphalt with crack-suppression membrane for adaptive sites. Drainage engineered per location.
03Net
Tournament-grade net posts in powder-coated steel. Centre strap, tensioning hardware, and a permanent-set net option for facilities.
04Light
Tournament LED rigs at 500+ lux for outdoor, 750+ lux for indoor. Anti-glare specification with broadcast-ready upgrade available.

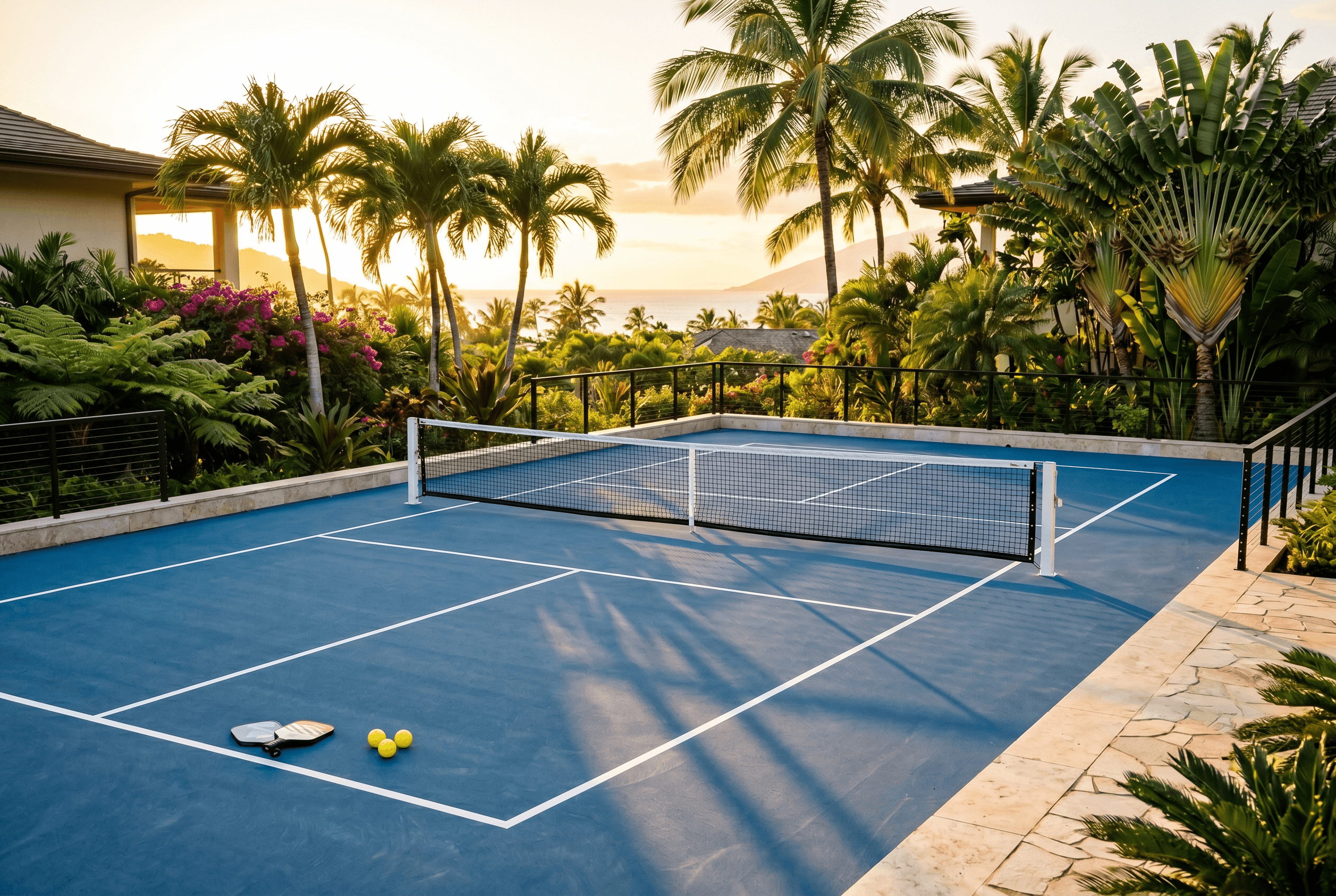

Outdoor pickleball court at a resort property.

Foundation

Choose the base.

01

Concrete.

Post-tension concrete for permanent installations. A foundation engineered for the long horizon with a quiet maintenance profile.

  • Post-tension cable reinforcement
  • Engineered sub-base system
  • Premium acrylic surface coating
  • Certified site preparation
  • Professional-grade installation

02

Asphalt.

Asphalt with crack-suppression membrane. Suited to climates with stable freeze cycles and adaptive sites.

  • Crack-suppression membrane standard
  • Weather-resistant construction
  • Premium acrylic surface coating
  • Engineered sub-base system
  • Professional-grade installation

Specification

A tournament court, measured.

Playing area
44 × 20 ft

USAPA / ITF-aligned doubles court.

Total footprint
60 × 30 ft

Allow 10ft back, 5ft side run-off.

Net height
34 in

Centre, 36in at posts. Tournament hardware.

Kitchen
7 ft

Non-volley zone, both sides of net.

Surface
Acrylic resurfacer

Tournament blue, charcoal, or sand.

Base
Concrete or asphalt

Selected by climate and play volume.

Light spec
500–750 lux

Outdoor / indoor tournament rigs.

Install window
14–21 days

Per court, including base cure.

Warranty
8–12 years

Surface, by base type and tier.

The court

In situ.

Pickleball court overview.
Outdoor pickleball court.

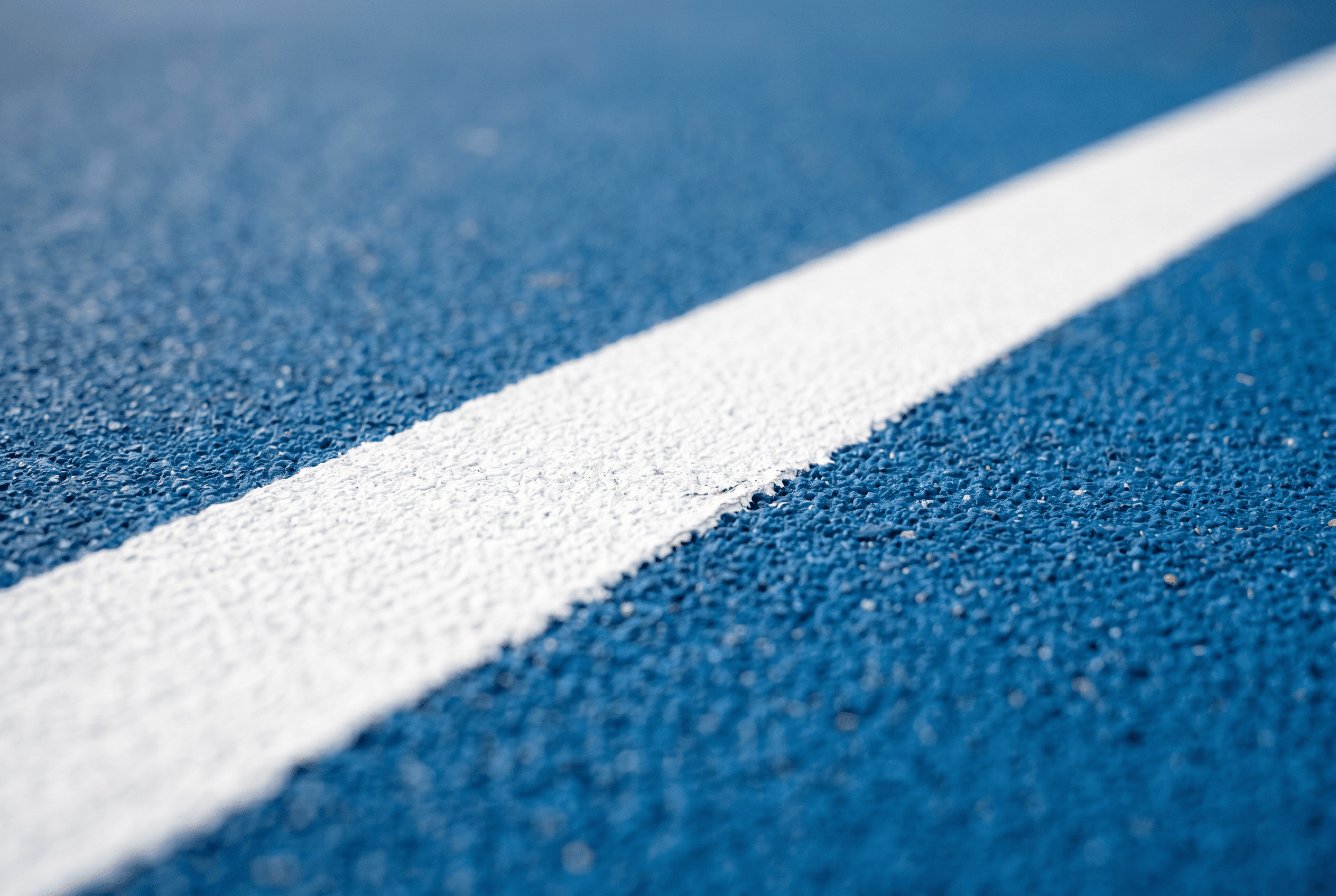

Pickleball line and surface detail.

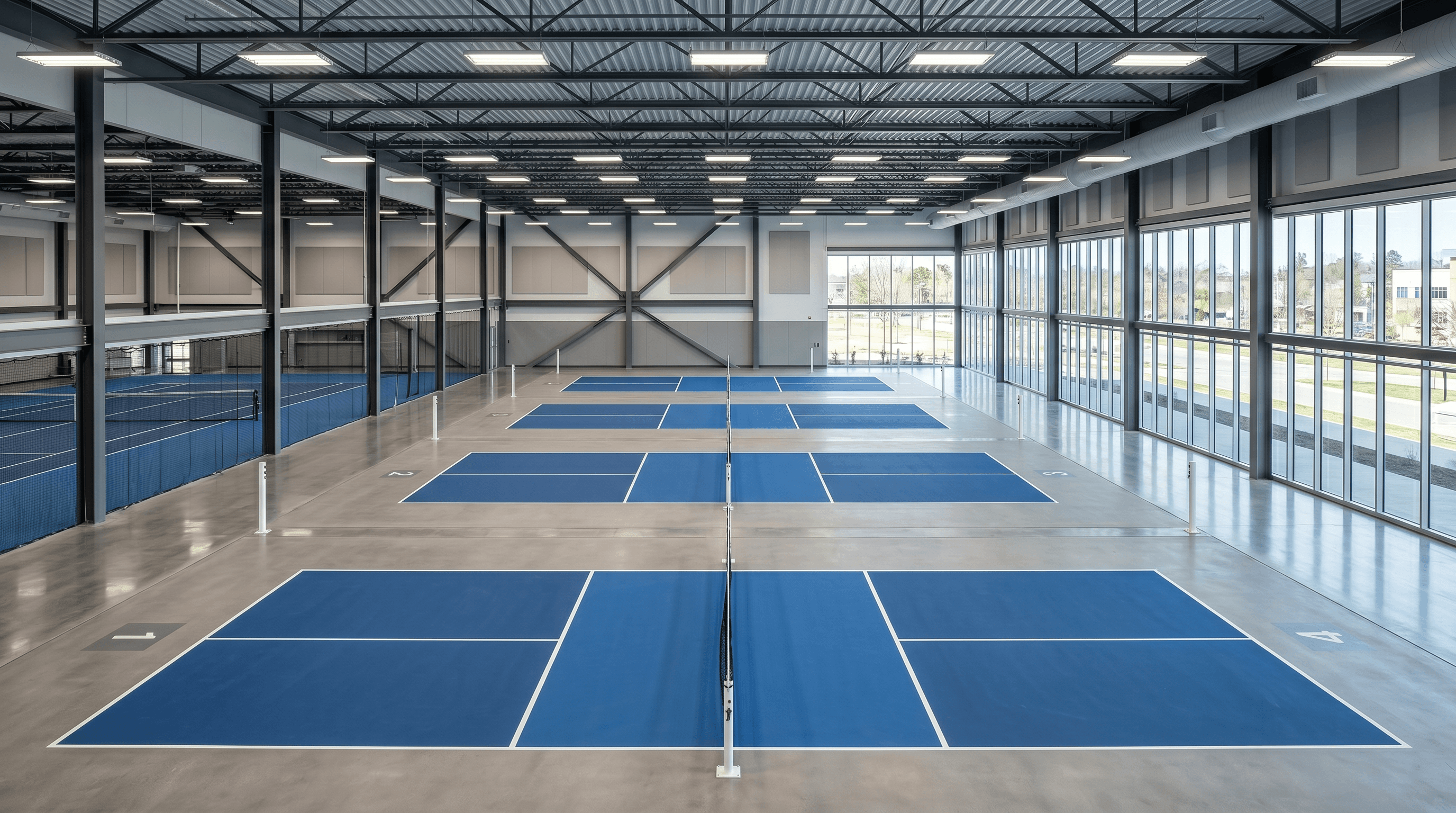

Multi-court pickleball facility.

Built to play.

Hecho para jugar.

Pickleball Inquiry

Begin a pickleball project.

Tell us about the property, the climate, and the program. Our team will respond within two business days with base options and pricing.
